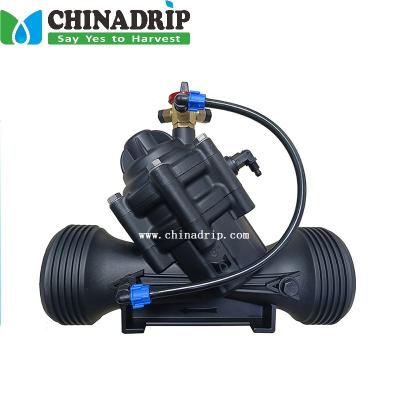

Proportional Pressure Reducing Valve

Home Hydraulic Controlling Valve Proportional Pressure Reducing Valve

Proportional Pressure Reducing Valve 3"

Proportional Pressure Reducing Valve 3

Proportional Pressure Reducing Valve 3"

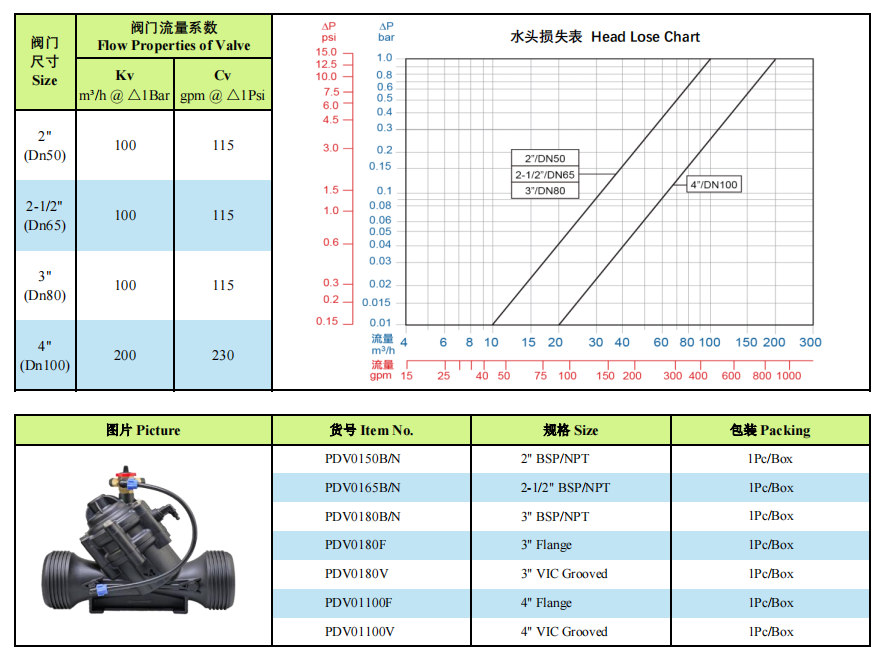

Technical Data:

·Size: 2" (Dn50), 2-1/2" (Dn65), 3" (Dn80), 4" (Dn 100).

·Connection: Threaded / Flange / VIC Grooved

·Pressure Rating: 10bar (145psi).
·Reduction Ratio: 3:1 (at Flow Velocity of 2-3m/s)

·Working Pressure: 0.5-10bar (7-145psi).






  • Item NO.:

    PDV0180B
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Product Origin:

    Xiamen, China
  • Color:

    Black
  • Shipping Port:

    Xiamen
New Products

Advantage:

·Hydraulic diaphragm valve with upper and lower dual-chamber structure.
·Proportional pressure reducing can be achieved solely relying on the dual-chamber design without pilot.
·The valve can be fully opened or closed, with rapid and quiet response.
·Simple and reliable structure, without complex components, making maintenance easy.

·Suitable to be installed in main line or sub line to avoid the following drip or mircosprinkler system to be damaged by high pressure.


Features of Proportional Pressure Reducing Valves for Agricultural Use

  1. Precise Control: Ensures stable water pressure in irrigation systems, enhancing water resource efficiency.
  2. Strong Contamination Resistance: Effectively handles water sources with particulates, adapting to complex agricultural conditions.
  3. Corrosion Resistance: Specially treated materials withstand corrosion from pesticides and fertilizers, extending valve lifespan.
  4. Energy Efficiency: Precisely adjusts pressure to reduce energy consumption and lower operational costs.
  5. Quick Response: Rapidly adjusts to pressure changes, maintaining system stability and reliability.

These features enhance the effectiveness and cost-efficiency of agricultural irrigation systems.
