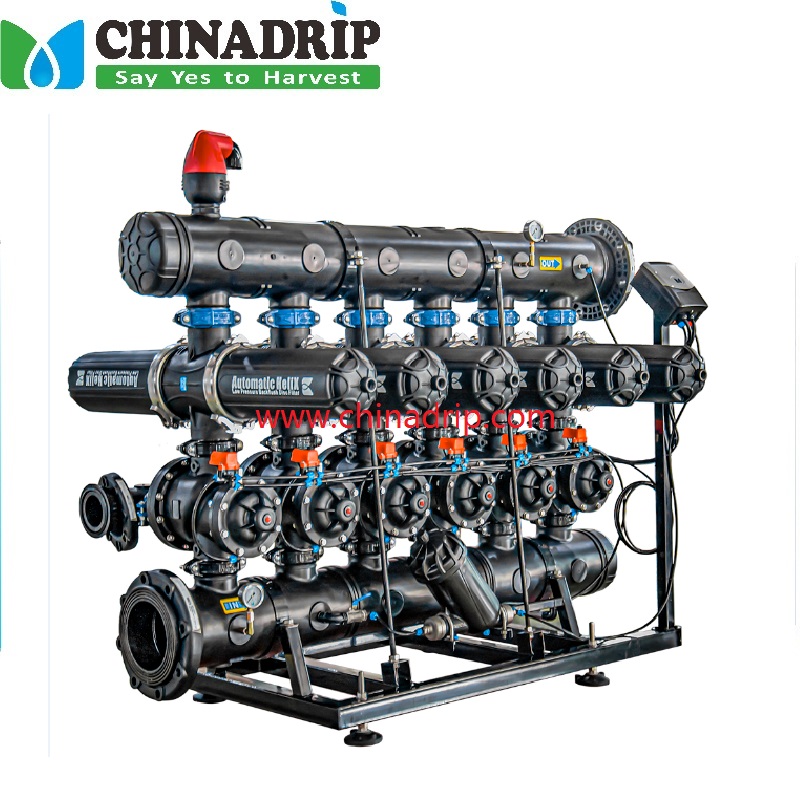

H4 Automatic Self-Clean Filtration System

T3 series is a highly integrated self-cleaning filter system which is combined by several 3"automatic backflush self-cleaning disc filter, 3" backwash hydraulic valve, controller etc.. It could be installed easily and work efficiency. Suitable for head or secondary filtration system to filter the water containing various suspended contaminants.

Features:

Technology:

1.Filtration Process: The controller controls the direction of the backwash valve to make the filter enter the filteration stage: The source water enters the filter passing through the system inlet pipe, backwash valve, and filter inlet one after another. Then the dirts stopped by disc and clean water pass through filter outlet to system outlet pipe.

2.Backflush Process: After the controller detects that the pressure difference between the inlet and outlet is greater than setted value, it controls the backwash valve to change direction, so that the filter enters the flushing stage: The clean water filtered by other filters passes through the system outlet pipe to the filter outlet and flushing the discs, then the dirty water passes through the filter inlet, the backwash valve and discharged to the system sewage pipe.

Head Loss Data:
