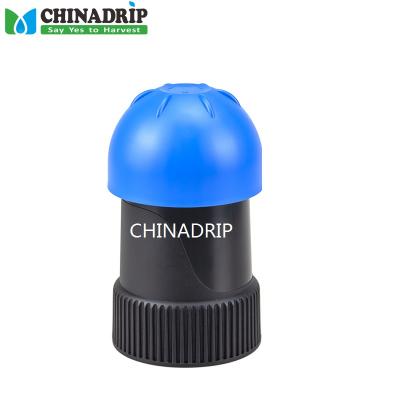

Farm irrigation system G type Kinetic Air Valve，2“ NPT

G type Kinetic Air Valve，

Size：3/4"BSP/NPT, Male Thread

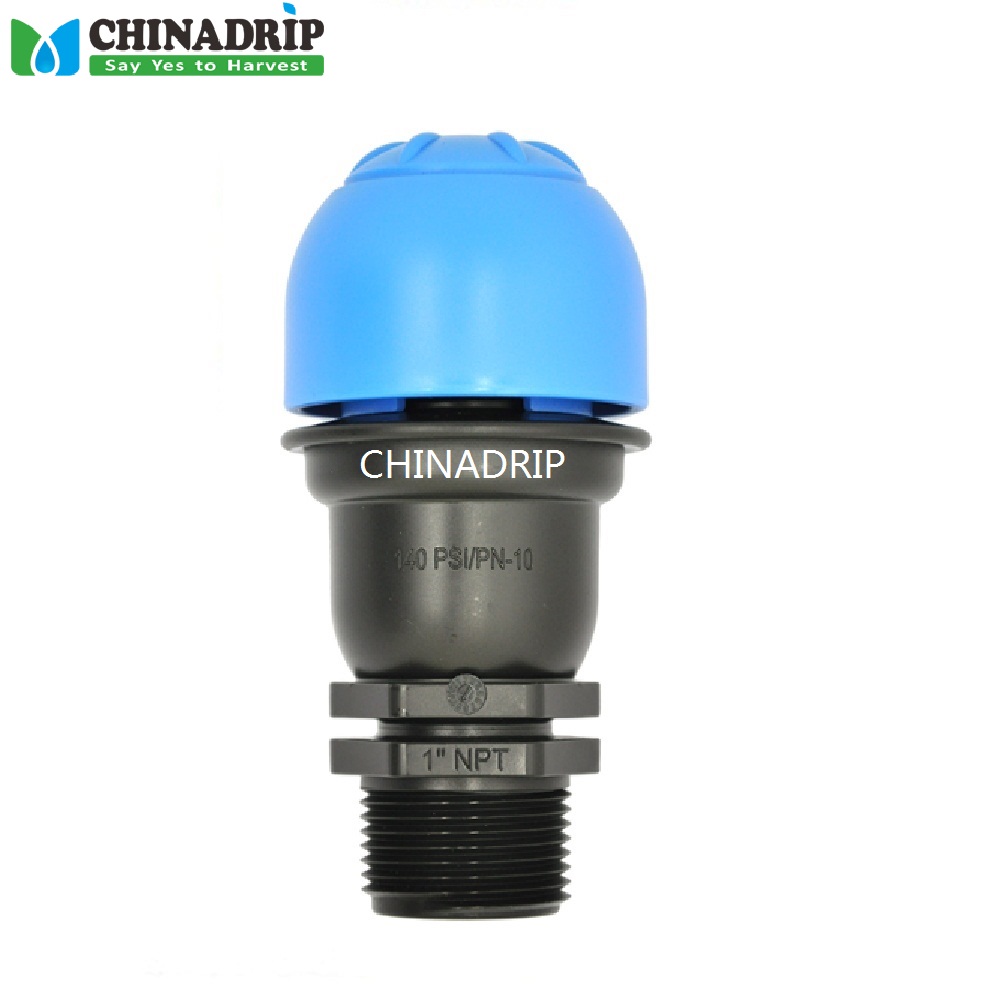

   1"BSP/NPT, Male Thread
   2"BSP/NPT, Female Thread
Working Pressure：0.1-10Bar (1.5-150psi)
Burst Pressure: 20Bar (300psi)
Working Temperature：1-60℃
Body Material：PP
Seal Material：EPDM

G Type is a high cost-effective Kinetic Air Valve which is designed for efficient discharge and intake of air in pipeline systems,filter systems and other locations where confined air could impair the irrigation system’s operation. It releases the air at high flow velocity during the initial filling of the system. And intaking large quantities of air to prevent pipelines away from collapse and cavitation damaged when pipe drains.

Air & Vacuum Relief Valve Family:

Features:

1.Large Flow: Provide maximum protection of irrigation system by large diameter orifice.
2.Reliable performance: The valve remains open until water reaches the float.
3.Great Sealing: Offers leak-proof sealing even at a low system pressure.
4.Reliable and durable: Lower maintenance and increased life span by made of composite materials with corrosion and UV resistant.

Application:

1.Maֺin Irrigation Networks: Air relief and vacuum prevention downstream of pumps, along supply lines and at elevations in main irrigation networks.
2. Irֺrigation Control Heads: Air relief and vacuum prevention at filtration and fertilization stations.
3.Inֺfield Systems: Provention of vacuum formation.

Technical Data:

 Air Flow Performance Charts:
