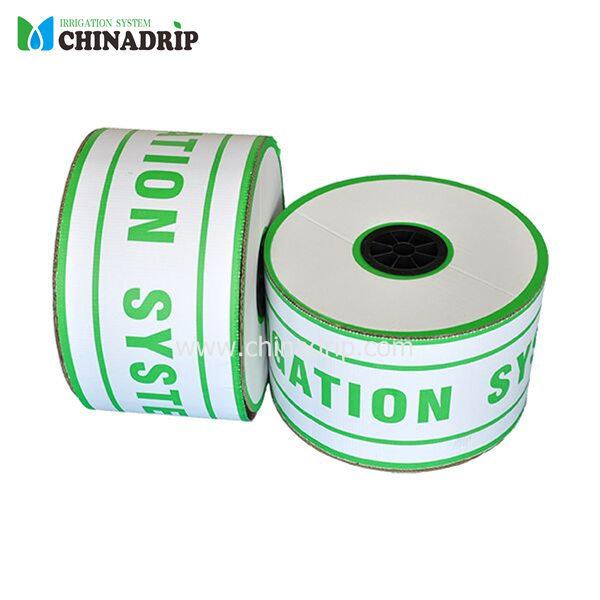

Flat Emitter Drip Tape
Drip Tape with Integral Emitter Diameter 16mm 0.20mm thickness 20cm spacing
Chinadrip drip tape with flat emitters inside, 16mm diameter, thickness from 0.2mm to 0.6mm, spacing from 10cm to 90cm, with flow rate 1.4L/H, 2.0L/H and 3.0L/H, made by high quality material and advanced technology, better for anti-corrosion and anti-aging, superior CV and excellent uniformity. With new type of labyrinth passages ,excellent clogging resistance. Excellent pressure-reducing, longer for laying length. Extruded with Emitter inside,,light weight and packed by roll,good for transportation. The emitter is engineered to resist plugging with large flow path size having the largest cross section in the industry worldwide.
Item NO.:
DT01162020Order(MOQ):
50000Payment:
T/T, L/CProduct Origin:
Xiamen, ChinaColor:
BlackLead Time:
3 days for one containerShipping Port:
Xiamen
Item
no. & Specification for Selection:
|
Item No. |
Diameter (mm) |
Thickness |
Emitter Spacing (cm) |
Flowing (L/h) |
Package (m/roll) |
G.W/Roll (Kg) |
|
DT0116202014 |
Dn16 |
0.20mm (8mil) |
20 |
1.4 |
2000 |
23 |
|
DT0116203020 |
30 |
2.0 |
22 |
|||
|
DT0116204020 |
40 |
2.0 |
21 |
|||
|
DT0116205030 |
50 |
3.0 |
21 |
|||
|
DT0116252014 |
Dn16 |
0.25mm (10mil) |
20 |
1.4 |
1800 |
24 |
|
DT0116252020 |
30 |
2.0 |
23 |
|||
|
DT0116253020 |
40 |
2.0 |
22 |
|||
|
DT0116253030 |
50 |
3.0 |
22 |
|||
|
DT0116302014 |
Dn16 |
0.30mm (12mil) |
20 |
1.4 |
1500 |
24 |
|
DT0116303020 |
30 |
2.0 |
23 |
|||
|
DT0116303030 |
40 |
3.0 |
22 |
|||
|
DT0116304020 |
50 |
2.0 |
22 |
|||
|
DT0116403020 |
Dn16 |
0.40mm (16mil) |
30 |
2.0 |
1000 |
18 |
|
DT0116403030 |
40 |
3.0 |
18 |
|||
|
DT0116404020 |
50 |
2.0 |
17 |
|||
|
DT0116404030 |
60 |
3.0 |
17 |
Note:
1. All
the holes of Emitters laying upward.
2. 120mesh
Filtration is necessary.
3. Lay
in line and levelly.
4. Avoid
to damage by insect and mouse.
5. When
drip tape laying under the clarity film, there is risk that surface of tape may
be damaged by sun light through water drop which is like a magnifying glass.
How to specify order
|
DT01 |
16 |
XX |
XX |
XX |
|
|
|
|||||
|
Type |
Diameter |
Thickness |
Spacing |
Flow Rate |
|
|
|
|||||
|
Drip tape with
Integral Emitter |
16mm |
0.20mm |
10cm |
1.4L/h |
|
|
0.25mm |
15cm |
2.0L/h |
|
||
|
0.30mm |
20cm |
3.0L/h |
|
||
|
0.40mm |
30cm |
|
|
||
|
|
10cm |
|
|
Application
·Drip
irrigation system for vegetable, fruit, flower, Chinese herbal and green house &
field crops.
|
Emitter Spacing |
Applied for crops commonly |
|
10cm |
All Crops |
|
20cm |
Chili, Cut
Flowers, Melon, Onion, Pepper, Potato, Strawberry, Tomato |
|
30cm |
Alfalfa,
Asparagus, Banana, Broccoli, Cauliflower, Celery, Corn, Cotton, Cucumber,
Eggplant, Garlic, Ginseng, Grape, Leafy, Vegetables, Lettuce, Onion, Pepper,
Potato, Pumpkin, Rose, Spinach, Squash, Strawberry, Sugarcane, Tobacco,
Tomato, Turnip, Watermelon |
|
40cm |
Alfalfa, Grape,
Onion, Pepper, Potato, Sugarcane, Tobacco, Turnip, Watermelon |
|
50cm |
Alfalfa,
Blueberry, Grape, Raspberry, Soybean, Sugarcane |
