Agriculture irrigation system K Type Kinetic Air Valve, 2" BSP/NPT

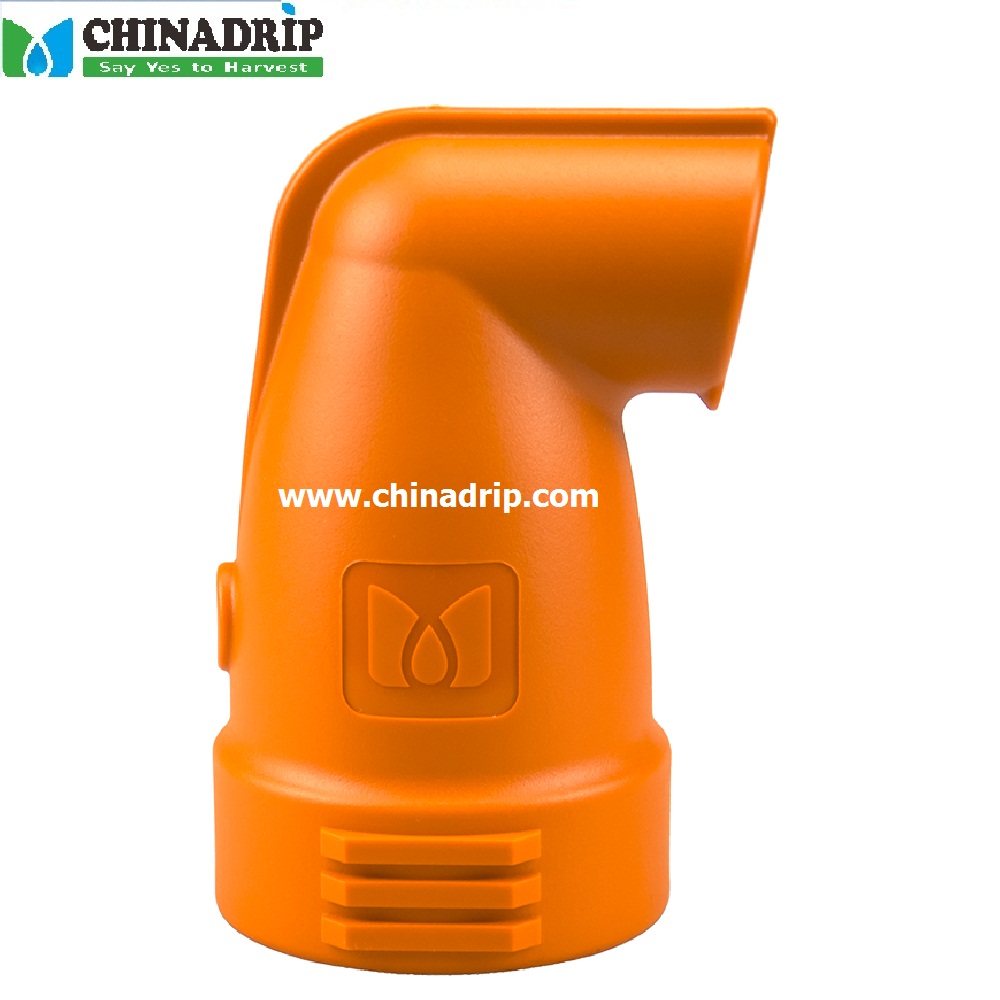

K Type Kinetic Air Valve

K Type is a high quality Kinetic Air Valve for a variety of irrigation networks and operating conditions. With its advanced aerodynamic design, this valve can evacuates large volume air during pipeline filling; enables large volume air intake and provides excellent protection against vacuum formation in the event of network draining. it is also with improved sealing under low pressure conditions.

Features:

· Large Flow: Sֺtraight flow body with large diameter automatic orifice: More than usual flow rates.
· Good intake and exhaust performance: With aerodynamic full-body kinetic shield, it prevents premature closing without disturbing air intake or discharge.
· Excellent Seal: Prevents leakage under low pressure (0.1bar /1.5psi) by dynamic sealing Compact, simple and reliable structure.
· Reliable and durable: Cֺompact, simple and reliable structure whose parts are fully corrosion, chemical and fertilizer resistant: Lower maintenance and increased life span.

Application:

· Mֺain Irrigation Networks: Air relief and vacuum prevention downstream of pumps, along supply lines and at elevations in main irrigation networks.
· Iֺrrigation Control Heads: Air relief and vacuum prevention at filtration and fertilization stations.
· Iֺnfield Systems: Provention of vacuum formation.
